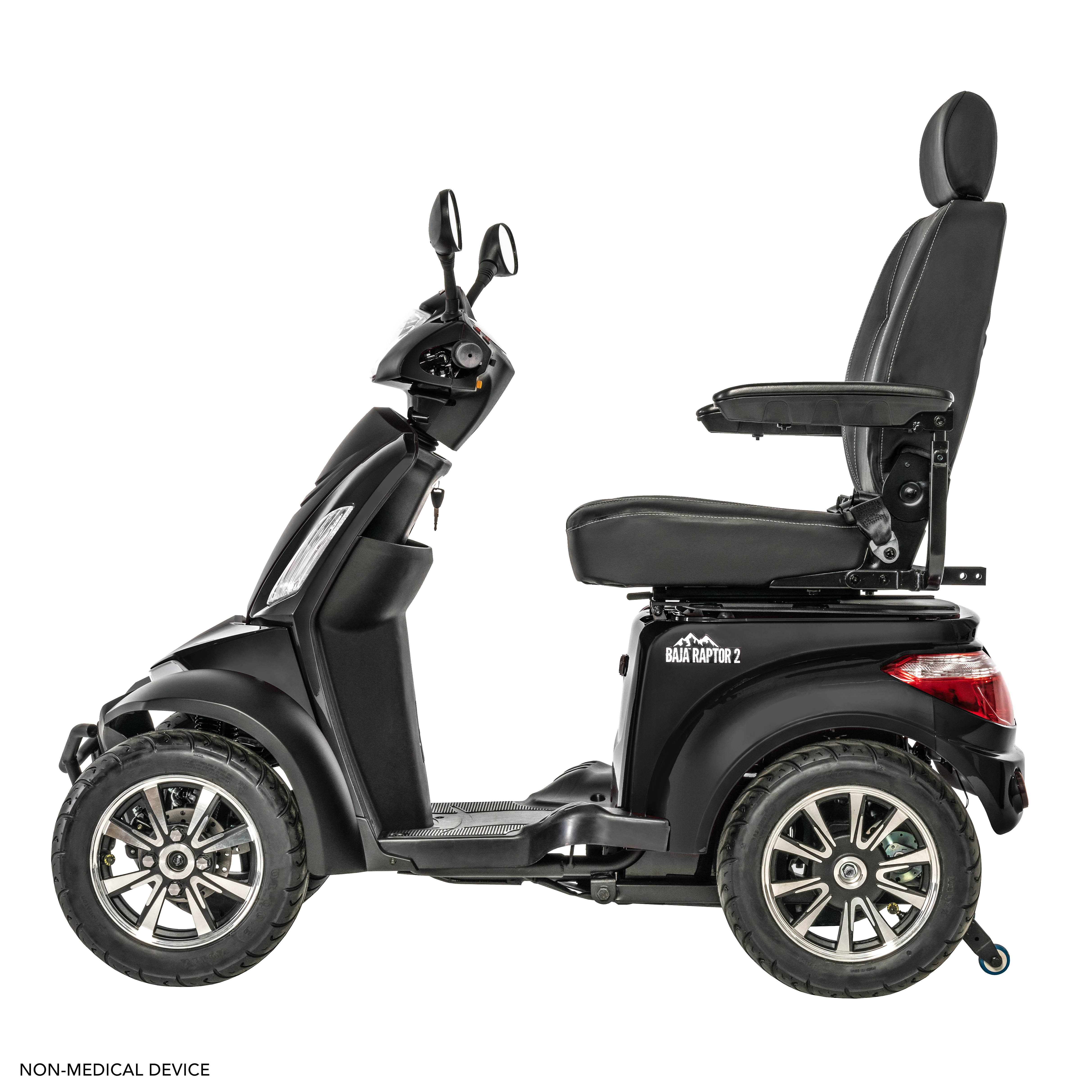

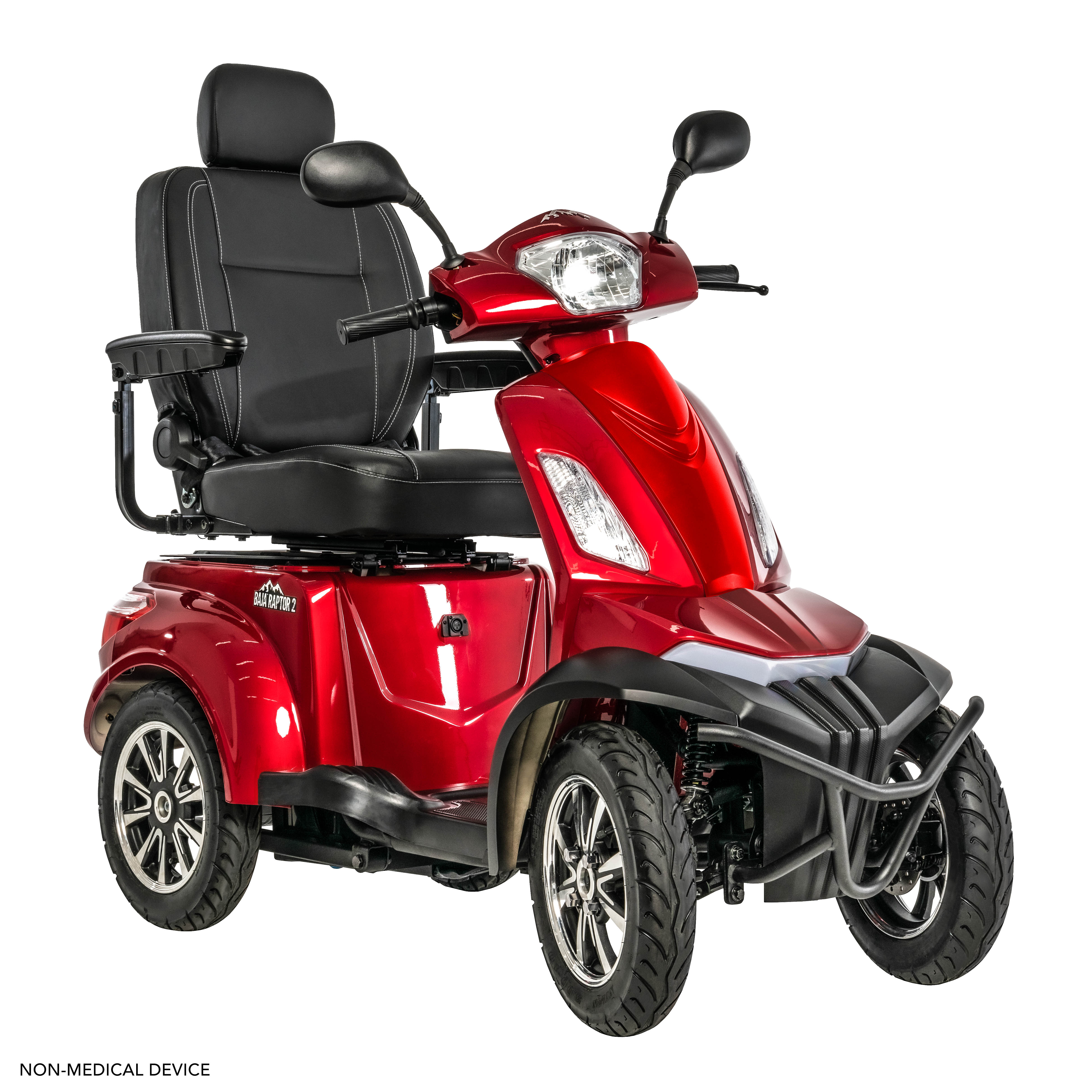

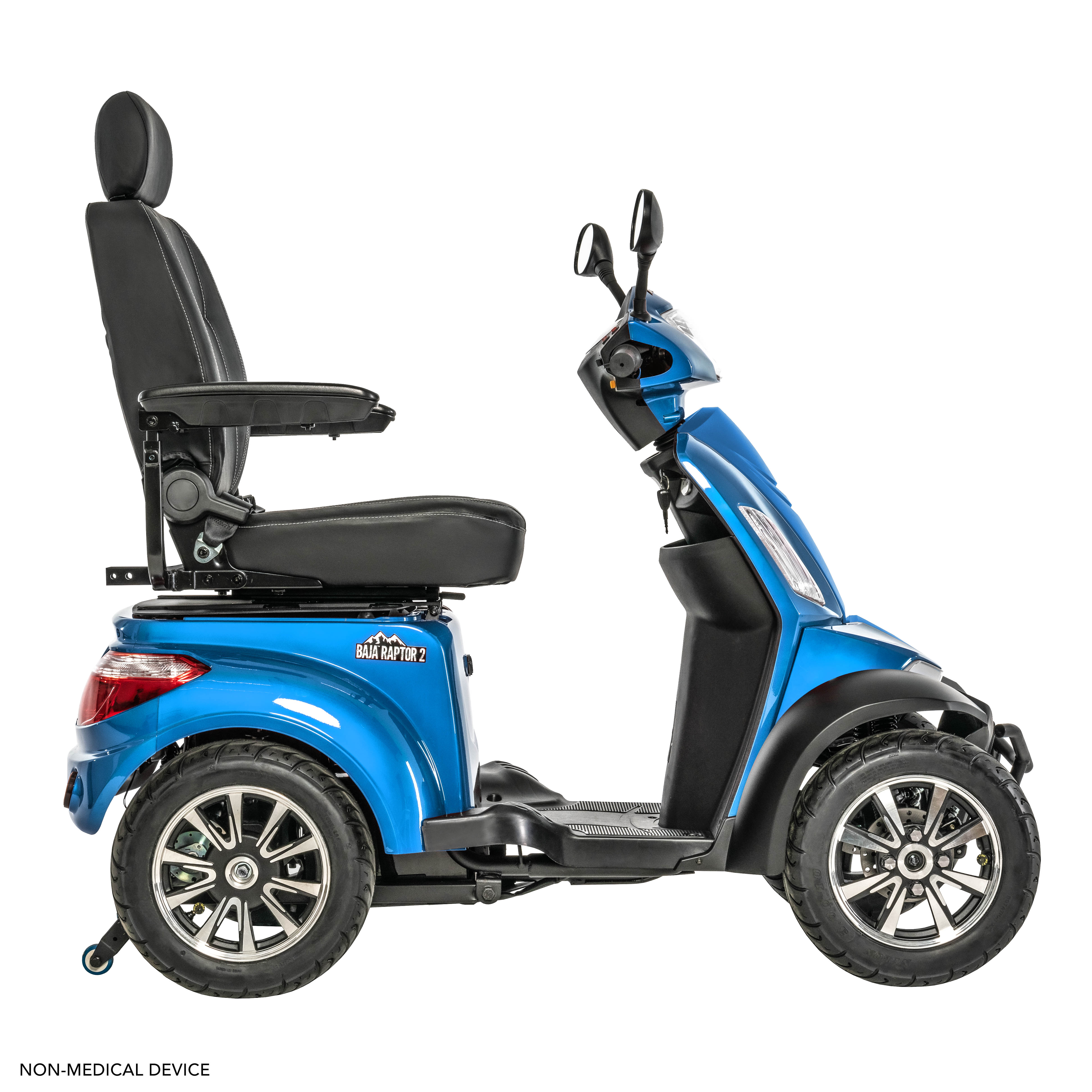

BAJA RAPTOR 2
800-977-3002
| CATEGORY | SPECIFICATION |
|---|---|
| Model1 |
Baja® Raptor 2 4-wheel |
| Model Number |
BA340 |
| Number of Tires |
4 |
| Front Tires3 |
16" tubeless pneumatic |
| Rear Tires2 |
3"x16" Tubeless Pneumatic |
| Maximum Speed1 |
Up to 13 mph |
| Ground Clearance3 |
3.5" at center of frame, 1.3" at anti-tip bracket, 6.1" at side deck |
| Turning Radius3 |
92.52" |
| Overall Length3 |
62.2" |
| Overall Width3 |
27.17" |
| Seat-to-Ground Height Range3 |
19.14” |
| Seat-to-Deck Range3 |
19" |
| Standard Seating |
Type: Limited recline high back with sliders |
| Weight Without Batteries3,5 |
250.6 lbs. |
| Weight of Heaviest Piece3 |
341.8 lbs. (unit does not disassemble/weight includes seat, base and batteries) |
| Battery Weight4 |
53 lbs. each |
| Battery Requirements3,4,6 |
Type: Two 12-volt, deep-cycle |
| Range Per Charge1,2 |
Up to 15.1 miles at 400lbs. at low speed |
| Battery Charger |
8-amp off-board charger |
| Suspension |
Full suspension (Front & Rear) |
| Drive System |
Rear-wheel drive, sealed transaxle, 24-volt DC motor |
| Dual Braking System |
Regenerative and electromechanical |
| Maximum Weight Capacity |
Up to 400 lbs. |
| HCPCS Code |
**Non-Medical Device. This product is not a medical device and is not intended to assist, treat, diagnose, or alleviate any medical condition or disability. |
| Warranty |
Lifetime Limited on Frame |
| Color Options |
Candy Apple Red, True Blue, Black with color inserts (Candy Apple Red, True Blue, Evolution Orange, Green Machine, Matte Black) |
